- Compact Camera Head
- W34 x H40 x D40mm and 100g or less.
- High Resolution / High Sensitivity
- Full HDTV 1/3-inch 3CMOS Sensors Provides 1000 TV lines of high definition video images, coupled with High Sensitivity performance of F14/2000lux providing the optimal video quality required for high-end medical video systems.
- Digital Processing
- Video signal processing is done in high-performance digital process of newly developed.
- A Variety of video output
- The camera equips with several video signal outputs such as digital HD signal (HD-SDI 1920 × 1080i/p), DVI digital signal (1920 × 1080i/p) and NTSC/PAL signal (VBS, S-VIDEO).
- Automatic Electronic Shutter System (Shutter Iris)
- Electronic shutter (Shutter Iris) functionality maintains the optimized performance in variety of situations.
- Automatic Iris Control
- Accurate iris control is possible with Auto-iris camera adaptors and Auto-iris lenses.
- Picture Freeze

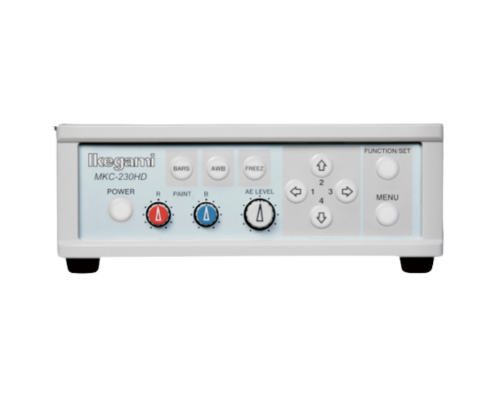

- Pressing the Freeze button on the CCU panel will hold the current image. This allows the detailed checking of situations where the motion could hide the details.
- Scene File
- 4 scene files are provided to keep pre-set memories for functions and controls. When the camera setting is changed, it can be easily set back to the original settings.
- Flip and Turn Function
- The captured images can be flipped horizontally and vertically by the digital processing to correct TV images against the optical inversion caused by optical instruments.
- Digital zoom Function
- The center of video image of the screen can be zoomed up to four times by using this function.
- Standard accessories
- AC Power Cable, Operation manual
- Optional Accessories
- Camera cable 5m cable, 7m single or 5+10m Combination cable), Microscope Adaptor, Dual Foot Switch.
In Stock

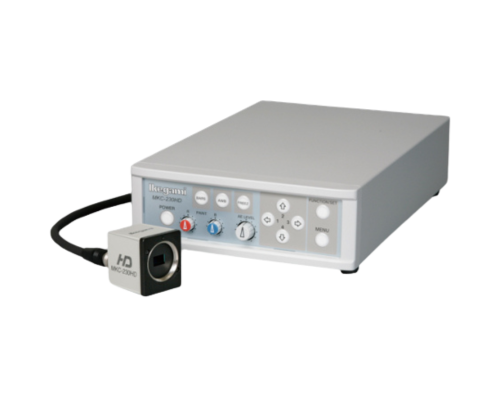

MKC-230 HD
3CMOS Full-HD 1080p Native Progressive Medical Grade Camera
The main feature of MKC-230HD is to process the image signals with 1080p native progressive and to output 3G HD-SDI 1080p signals. It should contribute to supply the better image quality with the advanced image processing.
Scanning system - 1920x1080 50/59.94 Progressive
Image Pickup Device - 1/3-inch 3CMOS
Effective Pixels - 1920(H) X 1080(V)
Lens Mount - C-Mount
Operating Temperature - 0°C to +40°C
Power Requirement - AC100V to AC230V ±10%
Power Consumption - 80VA or less
Dimensions/Weight - Camera Head:W34 x H40 x D40mm / 100g or less CCU:W170 x H58 x D200mm / 2kg or less
Camera Cable - 5m single, 7m single or 5+10m combination cable
Performance & Sensitivity - F14 at 2000 lux/3200°K or better
S/N Ratio - 54dB (Gamma/Detail off, Y signal)
Resolutions - Horizontal: 1000 TV lines

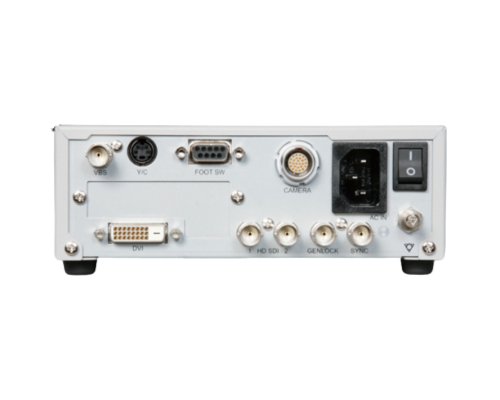

Output signal
HDTV - HD-SDI 1920×1080 i/p BNC 2ch & DVI 1920×1080 i/p 1ch
SDTV - Composite (VBS) BNC 1ch & S-Video S terminal 1ch
Sync Signal - HDTV: Tri-sync signal 1ch
Function & Auto White Balance - Available on the CCU front panel
Auto Iris - DC IRIS control
Auto electrical shutter - 1/50 or 1/60 sec to 1/10000 sec
Auto gain control - 0～18ｄＢ
Measurement area - 4 area + user setting
Scene file- 4 files
Freeze - Available on the CCU front panel or an optional Switch
